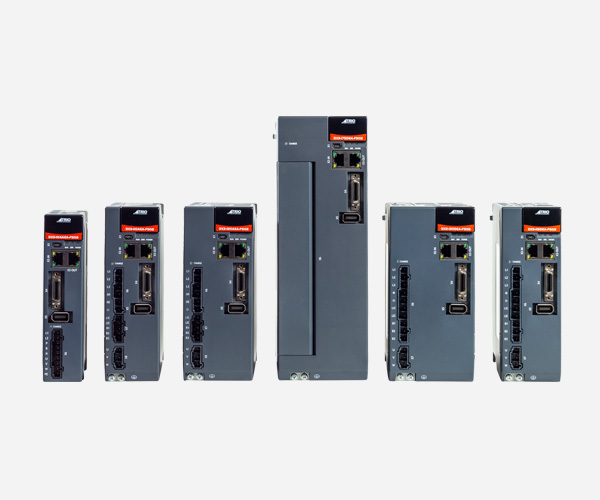

DX3, the single-axis ac servo drive, is designed to create the most cost-effective optimised entry level solution with excellent performance and practical control functions. The Trio DX3 drive is compatible with Trio MX servo motors and Trio's Motion Coordinators to provide high-speed, high-precision, high performance machine solutions.

With a power range from 50W to 7.5kW and options for EtherCAT or Conventional (Pulse & Direction, Analogue and CANopen and stand-alone indexing) control, DX3 will suit a wide variety of machine types.

DX3 is fully integrated into Trio’s application development tool, Motion Perfect, our software environment for system planning, drive and controller configuration, virtualisation and machine programming.

At A Glance

- Fully integrated into Motion Perfect
- Matched with MX motor range
- Internal drive protection functions
- Comprehensive tuning technology
- Functional Safety STO (SIL3, PLe) on EtherCAT models
- Field upgradable firmware
- Electronic nameplate
- Compact size
- Zero stacking
- USB commissioning
- Keypad interface
- 200V ac from 50W to 2kW
- 480V ac from 1kW to 7.5kW
- 350% overload
- Digital inputs / Outputs
- 2 Touch Probe inputs

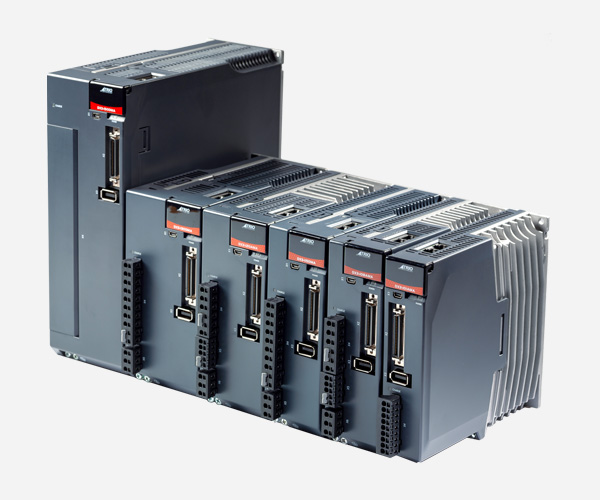

DX3, the single-axis ac servo drive, is designed to create the most cost-effective optimised entry level solution with excellent performance and practical control functions. The Trio DX3 drive is compatible with Trio MX servo motors and Trio's Motion Coordinators to provide high-speed, high-precision, high performance machine solutions.

With a power range from 50W to 7.5kW and options for EtherCAT or Conventional (Pulse & Direction, Analogue and CANopen) control, DX3 will suit a wide variety of machine types.

DX3 is fully integrated into Trio’s application development tool, Motion Perfect, our software environment for system planning, configuration, virtualisation and machine programming.

At A Glance

- Fully integrated into Motion Perfect
- Matched with MX motor range
- Internal drive protection functions
- Comprehensive tuning technology
- Field upgradable firmware
- Electronic nameplate
- Compact size
- Zero stacking
- USB commissioning
- Keypad interface
- 200V ac from 50W to 2kW
- 480V ac from 1kW to 7.5kW
- 350% overload
- 2 Touch Probe inputs
- Preset positions, up to 32 stored positions - Pulse & Direction, Analogue or CANopen control

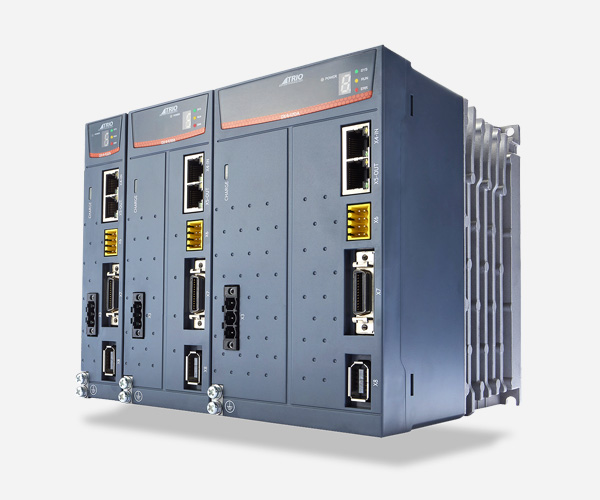

The DX4 comes in 3 frame sizes with power ratings from 50W to 3kW. Designed to be matched with the MX motors and accessories it offers a high-speed, high-precision machine solution.

The DX4 is designed to work seamlessly with Trio's EtherCAT controllers and be fully integrated into Trio’s application development tool, Motion Perfect allowing complete machine configuration from one tool; commissioning, diagnostics and programming.

With a focus on ease of use, the DX4 minimises setup time allowing you to focus on your application.

Highlights

- Drive and Motion Coordinator fully integrated into Motion Perfect
- Matched with MX motor range of low and medium inertia motors
- EtherCAT support, update rates down to 125us
- Compact size
- Zero stacking installation
- Functional Safety Dual STO (SIL3, PLe)
- 200Vac from 50W up to 3kW
- 20-bit incremental or 23-bit absolute encoder interface
- 350% overload capability
- Internal drive protection functions
- 7 digital inputs, 2 dedicated touch probe inputs for position latching
- 4 digital outputs, second encoder interface for dual encoder application
- Comprehensive tuning technology including: Auto-tuning function, adaptive vibration suppression, friction compensation
- Field upgradable firmware

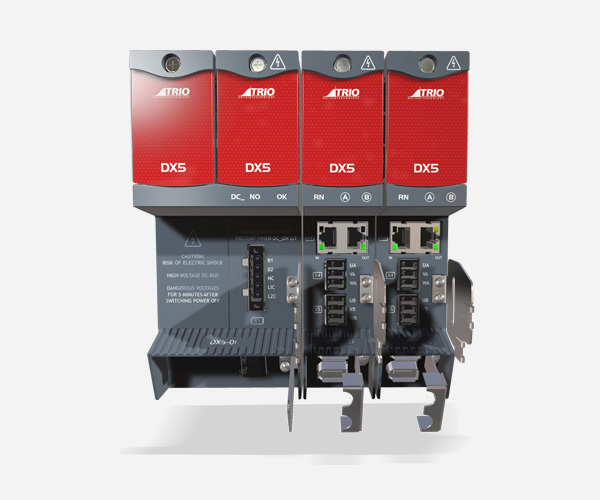

DX5 is designed to work seamlessly with Trio's controllers and is fully integrated into Trio’s application development tool, Motion Perfect. It comes in power ratings from 400W to 750W. Matched with the MXL motors it offers a high-speed, high-precision machine solution.

DX5 dual axis drive modules come in 2 compact frame sizes and combined with the power supply units can be configured for up to 16 axes with power ratings from 400W to 750W. Designed to be matched with the MXL motors and accessories it offers a high-speed, high-precision machine solution.

The DX5 is designed to work seamlessly with Trio's EtherCAT controllers and be fully integrated into Trio’s application development tool, Motion Perfect allowing complete machine configuration from one tool; commissioning, diagnostics and programming.

With a focus on ease of use, the DX5 minimises setup time allowing you to focus on your application.

Highlights

- DX5 drives and Trio's motion controller fully integrated into Motion Perfect
- EtherCAT network for motion control
- Zero stacking gap installation
- Optimized for multi-axis machines
- 200V ac (3-phase) supply module
- Dual 750W axis module, supporting 750W and 400W motors
- Dual 400W axis module, supporting 400W, 200W and 100W motors
- 23-bit multi-turn absolute encoder
- 350% overload
- Internal drive protection functions
- Comprehensive tuning technology
- Field upgradable firmware
- Matched with MXL motors
- IO functions handled by motion controller as part of the DX series ‘Everything you need nothing more’ concept

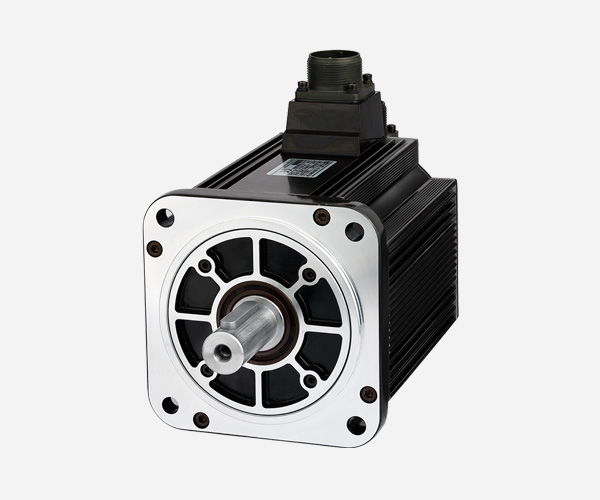

The MXL family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 6000 rpm, include variants with an integrated brake.

Low inertia allows very fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

Highlights

- 20-bit incremental or 23-bit absolute encoder option
- IP65 rated
- Oil seal as standard
- Optional brake

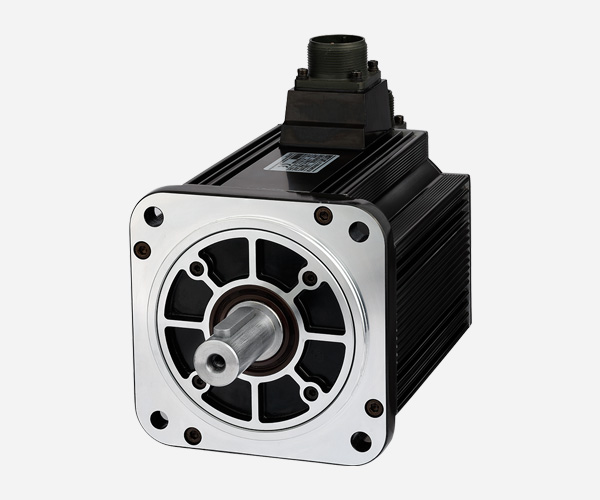

The MXM family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 3000rpm, include variants with an integrated brake.

Medium inertia allows fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

Highlights

- 17-bit incremental or 23-bit absolute encoder option
- IP65 rated
- Oil seal as standard
- Optional brake
